Overview

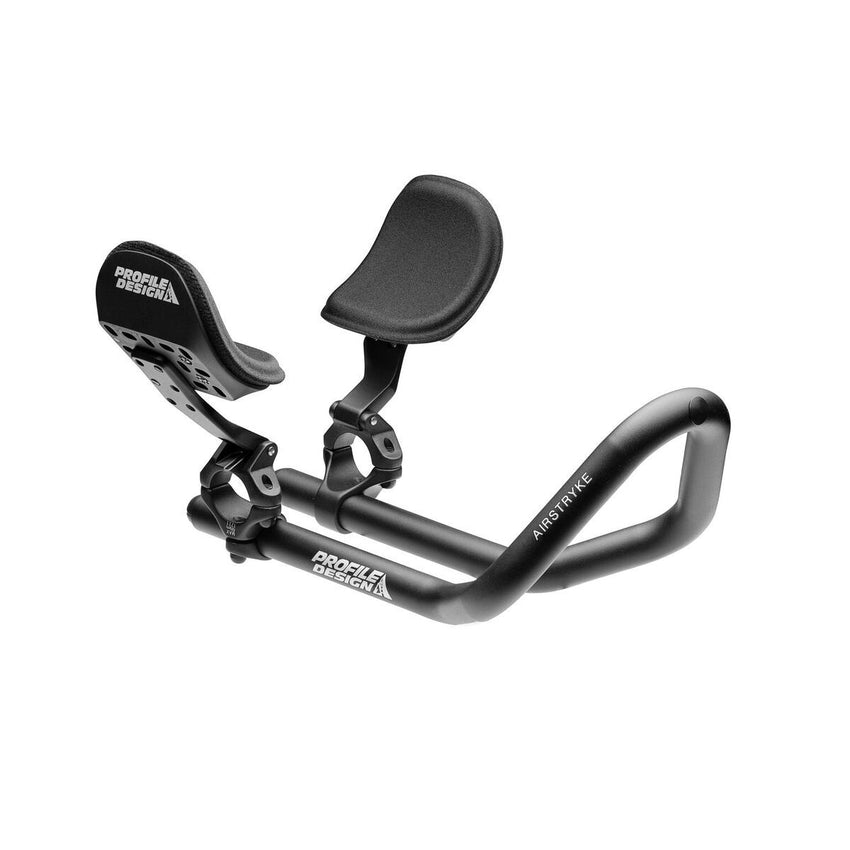

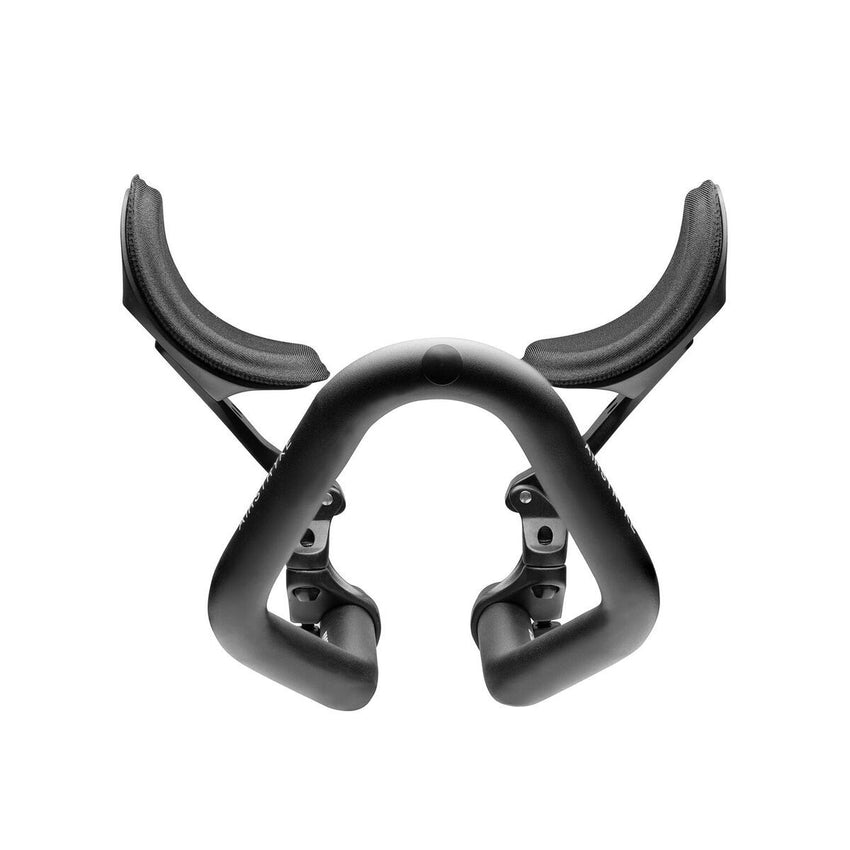

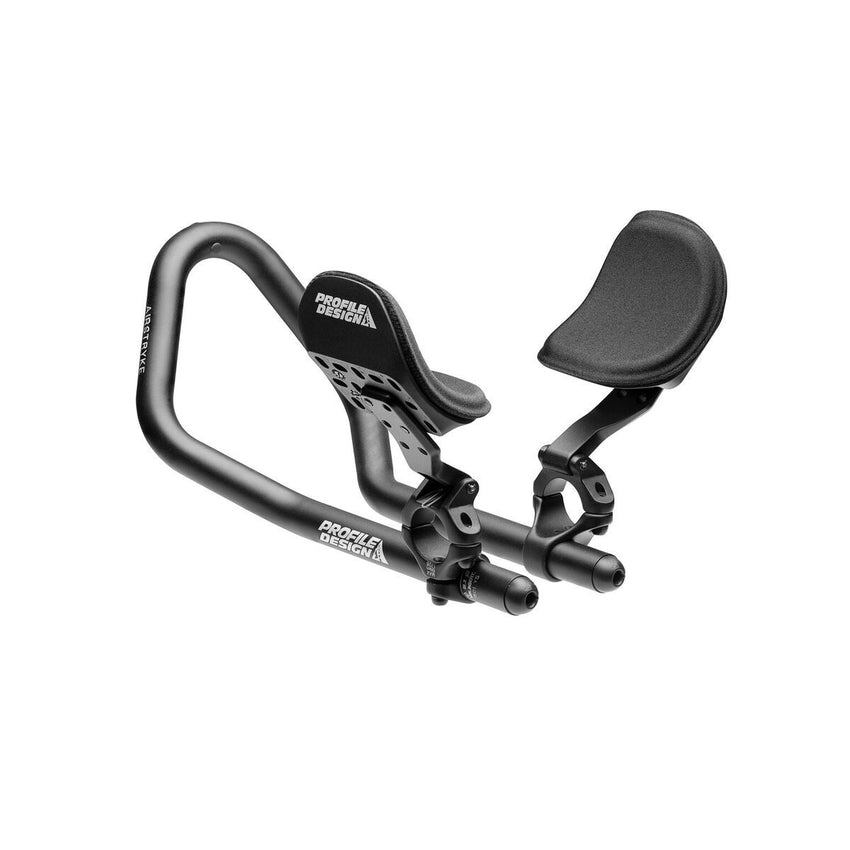

The Airstryke ii takes the features of the ever popular Airstryke and adds an expanded fit range and more comfortable armrest. The flip up bracket and classic shape are retained.
Performance
The Airstryke ii is intended to allow riders to add aerobars to their road or adventure bike without sacrificing the ability to hold the bars close to the stem. The comfortable grip angle and smoothly curved armrest offer a relaxed position for long days in the saddle.
Fit Data
- Armrest Offset: -85mm to 17.5mm in 7.5mm steps
- Armrest Width: 131mm to 298mm in 18.5mm steps
- Armrest Stack: 40mm
Orgin
As one of the most popular model in the history of aerobars it seemed appropriate to update the much loved Airstryke with our new generation fit range and comfort focused armrest. We didn't want to change the elements that have made the bar so successful and the changes made just enhance the adjustability and comfort.
Specs
- Bracket: L2 Flip-Up
- Clamp Diameter: 31.8mm (26.0 w/Shims)
- Armrest: Ergo Armrest
- Armrest Stack: 40mm
- Reach: -85mm to 17.5mm in 7.5mm steps
- Extension Adjustment: 150mm (center of basebar - end)
- Armrest Width: 155mm - 203mm
- Color: Anodized matte Black
- Weight: 592g
Tech Guide
Torque settings (all bolts are M6)
- Bar Clamp: 6Nm
- Extension Clamp: 6Nm
- Armrest Bolts: 4.7Nm
